Static Public Member Functions
static Lanes	createLanesContainer ()

static void	createAndAddLane (LanesToLinkAssignment l2l, LanesFactory factory, Id< Lane > laneId, double capacity, double startsAtMeterFromLinkEnd, int alignment, int numberOfRepresentedLanes, List< Id< Link >> toLinkIds, List< Id< Lane >> toLaneIds)

static void	createOriginalLanesAndSetLaneCapacities (Network network, Lanes lanes)

static List< ModelLane >	createLanes (Link link, LanesToLinkAssignment lanesToLinkAssignment)

static void	calculateAndSetCapacity (Lane lane, boolean isLaneAtLinkEnd, Link link, Network network)

static void	calculateMissingCapacitiesForLanes20 (String networkInputFilename, String lanes20InputFilename, String lanes20OutputFilename)

static void	overwriteLaneCapacitiesByNetworkCapacities (Network net, Lanes lanes)

Detailed Description

Author: dgrether; tthunig

Definition at line 37 of file LanesUtils.java.

Member Function Documentation

◆ createLanesContainer()

static Lanes org.matsim.lanes.LanesUtils.createLanesContainer ( )

static

Definition at line 39 of file LanesUtils.java.

                                               {
         return new LanesImpl();
     }

◆ createAndAddLane()

static void org.matsim.lanes.LanesUtils.createAndAddLane	(	LanesToLinkAssignment	l2l,
		LanesFactory	factory,
		Id< Lane >	laneId,
		double	capacity,
		double	startsAtMeterFromLinkEnd,
		int	alignment,
		int	numberOfRepresentedLanes,
		List< Id< Link >>	toLinkIds,
		List< Id< Lane >>	toLaneIds
	)

static

Convenience method to create a lane with the given Id, the given length, the given capacity, the given number of represented lanes, the given alignment and the given Ids of the downstream links or lanes, respectively, the lane leads to. The lane is added to the LanesToLinkAssignment given as parameter.

Parameters

l2l	the LanesToLinkAssignment to that the created lane is added
factory	a LaneDefinitionsFactory to create the lane
laneId
capacity
startsAtMeterFromLinkEnd
alignment
numberOfRepresentedLanes
toLinkIds
toLaneIds

Definition at line 62 of file LanesUtils.java.

References org.matsim.lanes.LanesToLinkAssignment.addLane(), org.matsim.lanes.Lane.addToLaneId(), org.matsim.lanes.Lane.addToLinkId(), org.matsim.lanes.LanesFactory.createLane(), org.matsim.lanes.Lane.setAlignment(), org.matsim.lanes.Lane.setCapacityVehiclesPerHour(), org.matsim.lanes.Lane.setNumberOfRepresentedLanes(), and org.matsim.lanes.Lane.setStartsAtMeterFromLinkEnd().

                                                                                               {

         Lane lane = factory.createLane(laneId);
         if (toLinkIds != null){
             for (Id<Link> toLinkId : toLinkIds) {
                 lane.addToLinkId(toLinkId);
             }
         }
         if (toLaneIds != null){
             for (Id<Lane> toLaneId : toLaneIds) {
                 lane.addToLaneId(toLaneId);
             }
         }
         lane.setCapacityVehiclesPerHour(capacity);
         lane.setStartsAtMeterFromLinkEnd(startsAtMeterFromLinkEnd);
         lane.setNumberOfRepresentedLanes(numberOfRepresentedLanes);
         lane.setAlignment(alignment);
         l2l.addLane(lane);
     }

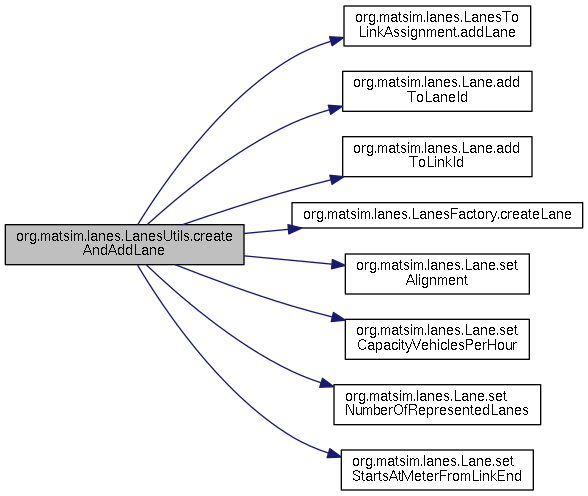

Here is the call graph for this function:

◆ createOriginalLanesAndSetLaneCapacities()

static void org.matsim.lanes.LanesUtils.createOriginalLanesAndSetLaneCapacities	(	Network	network,
		Lanes	lanes
	)

static

Replaces the method that converted a lane from format 11 to format 20. Use this when you have not defined an original lane of the link and when you have not set lane capacities yet.

Definition at line 89 of file LanesUtils.java.

References org.matsim.lanes.Lane.addToLaneId(), org.matsim.lanes.LanesUtils.calculateAndSetCapacity(), org.matsim.api.core.v01.Id< T >.create(), org.matsim.lanes.LanesFactory.createLane(), org.matsim.lanes.Lanes.getFactory(), org.matsim.lanes.Lanes.getLanesToLinkAssignments(), org.matsim.api.core.v01.network.Link.getLength(), org.matsim.api.core.v01.network.Network.getLinks(), org.matsim.api.core.v01.network.Link.getNumberOfLanes(), org.matsim.lanes.Lane.setNumberOfRepresentedLanes(), and org.matsim.lanes.Lane.setStartsAtMeterFromLinkEnd().

                                                                                             {
         LanesFactory factory = lanes.getFactory();
         for (LanesToLinkAssignment l2l : lanes.getLanesToLinkAssignments().values()){
             Link link = network.getLinks().get(l2l.getLinkId());

             Lane olLane = factory.createLane(Id.create(l2l.getLinkId().toString() + ".ol", Lane.class));
             l2l.addLane(olLane);
             for (Lane lane : l2l.getLanes().values()) {
                 olLane.addToLaneId(lane.getId());

                 //set capacity of the lane depending on link capacity and number of representative lanes
                 LanesUtils.calculateAndSetCapacity(lane, true, link, network);
             }
             olLane.setNumberOfRepresentedLanes(link.getNumberOfLanes());
             olLane.setStartsAtMeterFromLinkEnd(link.getLength());
         }
     }

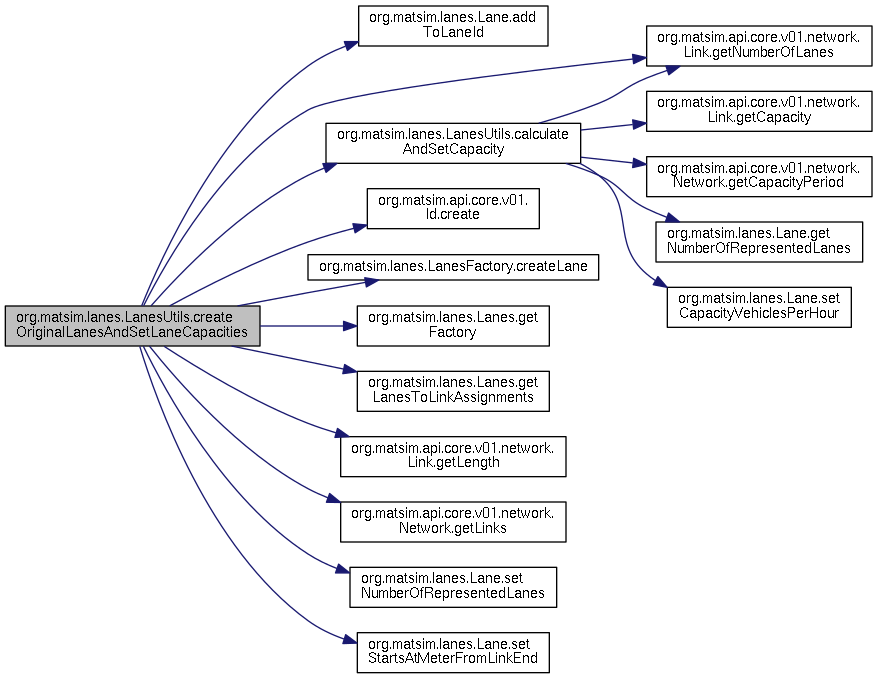

Here is the call graph for this function:

◆ createLanes()

static List<ModelLane> org.matsim.lanes.LanesUtils.createLanes	(	Link	link,
		LanesToLinkAssignment	lanesToLinkAssignment
	)

static

Creates a sorted list of lanes for a link.

Parameters

link
lanesToLinkAssignment

Returns: sorted list with the most upstream lane at the first position.

Definition at line 113 of file LanesUtils.java.

References org.matsim.api.core.v01.Identifiable< T >.getId(), org.matsim.lanes.ModelLane.getLaneData(), org.matsim.lanes.LanesToLinkAssignment.getLanes(), org.matsim.api.core.v01.network.Link.getLength(), org.matsim.lanes.Lane.getStartsAtMeterFromLinkEnd(), org.matsim.lanes.Lane.getToLaneIds(), org.matsim.lanes.ModelLane.getToLanes(), and org.matsim.lanes.Lane.getToLinkIds().

Referenced by org.matsim.core.mobsim.qsim.qnetsimengine.QLanesNetworkFactory.createNetsimLink().

                                                                                                       {
         List<ModelLane> queueLanes = new ArrayList<>();
         List<Lane> sortedLanes =  new ArrayList<>(lanesToLinkAssignment.getLanes().values());

         // orders lanes by start on link an whether they are outgoing or not o the start is the same
         sortedLanes.sort(Comparator.comparingDouble(Lane::getStartsAtMeterFromLinkEnd).thenComparing(
                 (l1, l2) -> {
                     boolean l1Outgoing = l1.getToLinkIds() != null && !l1.getToLinkIds().isEmpty();
                     boolean l2Outgoing = l2.getToLinkIds() != null && !l2.getToLinkIds().isEmpty();
                     if (l1Outgoing && !l2Outgoing)
                         return -1;
                     else if(l2Outgoing && !l1Outgoing)
                         return 1;
                     else
                         return 0;
                 }
         ));
         Collections.reverse(sortedLanes);

         List<ModelLane> laneList = new LinkedList<>();
         Lane firstLane = sortedLanes.remove(0);
         if (firstLane.getStartsAtMeterFromLinkEnd() != link.getLength()) {
             throw new IllegalStateException("First Lane Id " + firstLane.getId() + " on Link Id " + link.getId() +
             "isn't starting at the beginning of the link!");
         }
         ModelLane firstQLane = new ModelLane(firstLane);
         laneList.add(firstQLane);
         Stack<ModelLane> laneStack = new Stack<>();

         while (!laneList.isEmpty()){
             ModelLane lastQLane = laneList.remove(0);
             laneStack.push(lastQLane);
             queueLanes.add(lastQLane);

             //if existing create the subsequent lanes
             List<Id<Lane>> toLaneIds = lastQLane.getLaneData().getToLaneIds();
             double nextMetersFromLinkEnd = 0.0;
             double laneLength = 0.0;
             if (toLaneIds != null   && (!toLaneIds.isEmpty())) {
                 for (Id<Lane> toLaneId : toLaneIds){
                     Lane currentLane = lanesToLinkAssignment.getLanes().get(toLaneId);
                     nextMetersFromLinkEnd = currentLane.getStartsAtMeterFromLinkEnd();
                     ModelLane currentQLane = new ModelLane(currentLane);
                     laneList.add(currentQLane);
                     lastQLane.addAToLane(currentQLane);
                 }
                 laneLength = lastQLane.getLaneData().getStartsAtMeterFromLinkEnd() - nextMetersFromLinkEnd;
                 lastQLane.setEndsAtMetersFromLinkEnd(nextMetersFromLinkEnd);
             }
             //there are no subsequent lanes
             else {
                 laneLength = lastQLane.getLaneData().getStartsAtMeterFromLinkEnd();
                 lastQLane.setEndsAtMetersFromLinkEnd(0.0);
             }
             lastQLane.setLength(laneLength);
         }

         //fill toLinks
         while (! laneStack.isEmpty()){
             ModelLane qLane = laneStack.pop();
             if (qLane.getToLanes() == null || (qLane.getToLanes().isEmpty())) {
                 for (Id<Link> toLinkId : qLane.getLaneData().getToLinkIds()){
                     qLane.addDestinationLink(toLinkId);
                 }
             }
             else {
                 for (ModelLane subsequentLane : qLane.getToLanes()){
                     for (Id<Link> toLinkId : subsequentLane.getDestinationLinkIds()){
                         qLane.addDestinationLink(toLinkId);
                     }
                 }
             }
         }

         Collections.sort(queueLanes, new Comparator<ModelLane>() {
             @Override
             public int compare(ModelLane o1, ModelLane o2) {
                 if (o1.getEndsAtMeterFromLinkEnd() < o2.getEndsAtMeterFromLinkEnd()) {
                     return -1;
                 } else if (o1.getEndsAtMeterFromLinkEnd() > o2.getEndsAtMeterFromLinkEnd()) {
                     return 1;
                 } else {
                     return 0;
                 }
             }
         });
         return queueLanes;
     }

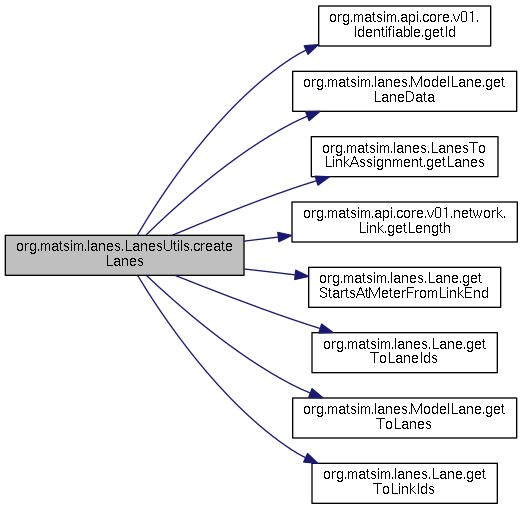

Here is the call graph for this function:

◆ calculateAndSetCapacity()

static void org.matsim.lanes.LanesUtils.calculateAndSetCapacity	(	Lane	lane,
		boolean	isLaneAtLinkEnd,
		Link	link,
		Network	network
	)

static

Calculate capacity by formular from Neumann2008DA:

Flow of a Lane is given by the flow of the link divided by the number of lanes represented by the link.

A Lane may represent one or more lanes in reality. This is given by the attribute numberOfRepresentedLanes of the Lane definition. The flow of a lane is scaled by this number.

Definition at line 210 of file LanesUtils.java.

References org.matsim.api.core.v01.network.Link.getCapacity(), org.matsim.api.core.v01.network.Network.getCapacityPeriod(), org.matsim.api.core.v01.network.Link.getNumberOfLanes(), org.matsim.lanes.Lane.getNumberOfRepresentedLanes(), and org.matsim.lanes.Lane.setCapacityVehiclesPerHour().

Referenced by org.matsim.lanes.LanesUtils.calculateMissingCapacitiesForLanes20(), and org.matsim.lanes.LanesUtils.createOriginalLanesAndSetLaneCapacities().

                                                                                                               {
         if (isLaneAtLinkEnd){
             double noLanesLink = link.getNumberOfLanes();
             double linkFlowCapPerSecondPerLane = link.getCapacity() / network.getCapacityPeriod()
                     / noLanesLink;
             double laneFlowCapPerHour = lane.getNumberOfRepresentedLanes()
                     * linkFlowCapPerSecondPerLane * 3600.0;
             lane.setCapacityVehiclesPerHour(laneFlowCapPerHour);
         }
         else {
             double capacity = link.getCapacity() / network.getCapacityPeriod() * 3600.0;
             lane.setCapacityVehiclesPerHour(capacity);
         }
     }

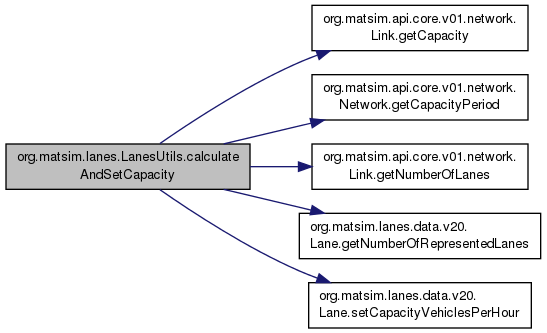

Here is the call graph for this function:

◆ calculateMissingCapacitiesForLanes20()

static void org.matsim.lanes.LanesUtils.calculateMissingCapacitiesForLanes20	(	String	networkInputFilename,
		String	lanes20InputFilename,
		String	lanes20OutputFilename
	)

static

Definition at line 225 of file LanesUtils.java.

References org.matsim.lanes.LanesUtils.calculateAndSetCapacity(), org.matsim.core.config.ConfigUtils.createConfig(), org.matsim.api.core.v01.Scenario.getLanes(), org.matsim.lanes.Lanes.getLanesToLinkAssignments(), org.matsim.api.core.v01.network.Network.getLinks(), org.matsim.api.core.v01.Scenario.getNetwork(), org.matsim.core.scenario.ScenarioUtils.loadScenario(), org.matsim.core.config.Config.network(), org.matsim.core.config.Config.qsim(), org.matsim.core.config.groups.NetworkConfigGroup.setInputFile(), org.matsim.core.config.groups.NetworkConfigGroup.setLaneDefinitionsFile(), org.matsim.core.config.groups.QSimConfigGroup.setUseLanes(), and org.matsim.lanes.LanesWriter.write().

                                                                                                                                                    {
         Config config = ConfigUtils.createConfig();
         config.network().setInputFile(networkInputFilename);
         config.qsim().setUseLanes(true);
         config.network().setLaneDefinitionsFile(lanes20InputFilename);
         Scenario scenario = ScenarioUtils.loadScenario(config);
         Network network = scenario.getNetwork();
         Lanes lanes = scenario.getLanes();
         for (LanesToLinkAssignment l2l : lanes.getLanesToLinkAssignments().values()){
             Link link = network.getLinks().get(l2l.getLinkId());
             for (Lane lane : l2l.getLanes().values()){
                 if (lane.getToLaneIds() == null || lane.getToLaneIds().isEmpty()){
                     calculateAndSetCapacity(lane, true, link, network);
                 }
                 else {
                     calculateAndSetCapacity(lane, false, link, network);
                 }
             }
         }
         LanesWriter writerDelegate = new LanesWriter(lanes);
         writerDelegate.write(lanes20OutputFilename);
     }

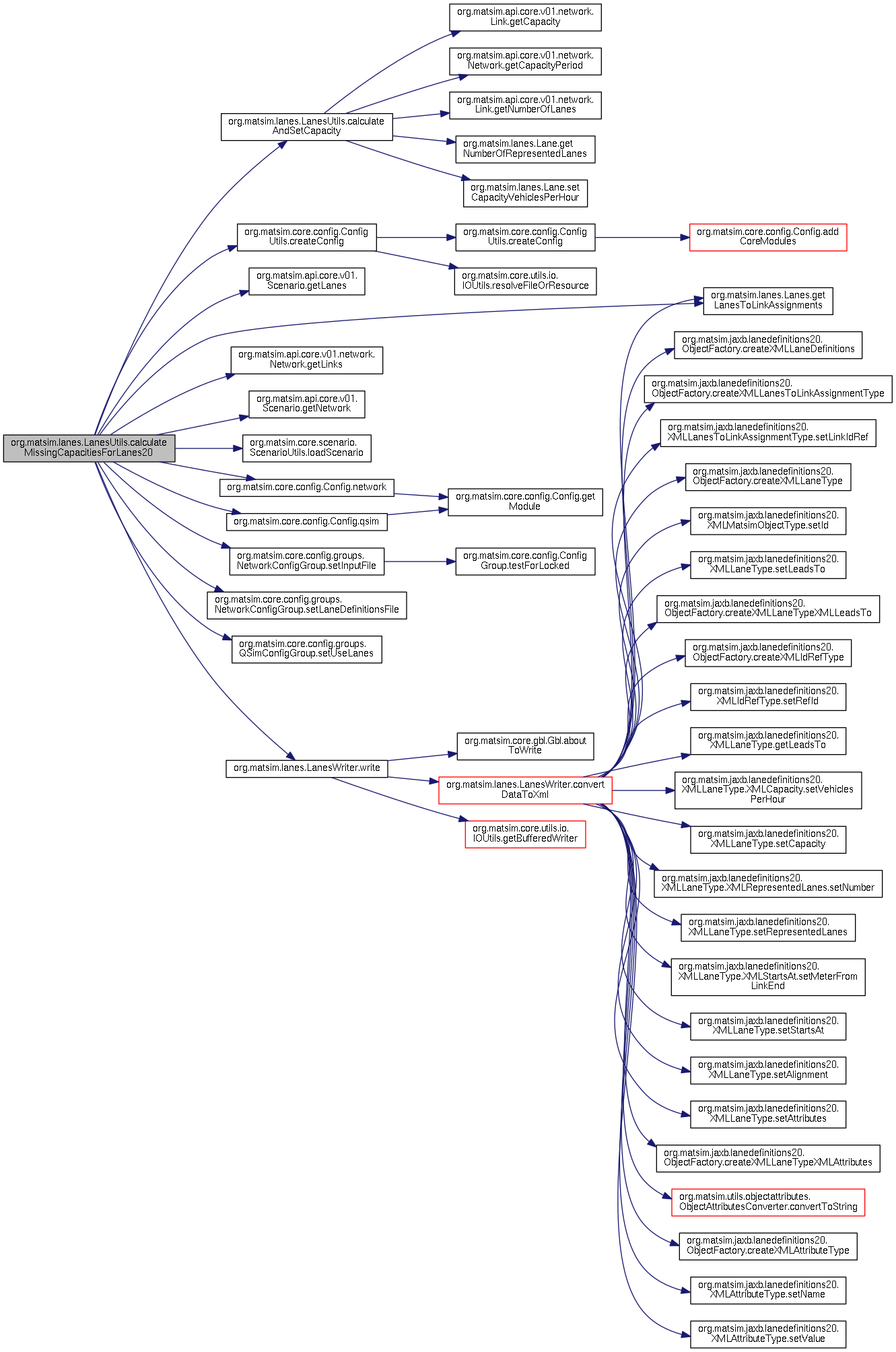

Here is the call graph for this function:

◆ overwriteLaneCapacitiesByNetworkCapacities()

static void org.matsim.lanes.LanesUtils.overwriteLaneCapacitiesByNetworkCapacities	(	Network	net,
		Lanes	lanes
	)

static

Definition at line 248 of file LanesUtils.java.

References org.matsim.lanes.Lanes.getLanesToLinkAssignments(), and org.matsim.api.core.v01.network.Network.getLinks().

                                                                                             {
         for (LanesToLinkAssignment linkLanes : lanes.getLanesToLinkAssignments().values()) {
             double linkCap = net.getLinks().get(linkLanes.getLinkId()).getCapacity();
             for (Lane lane : linkLanes.getLanes().values()) {
                 lane.setCapacityVehiclesPerHour(linkCap);
             }
         }
     }

Here is the call graph for this function:

The documentation for this class was generated from the following file:

lanes/LanesUtils.java
