org.matsim.run.XY2Links Class Reference

Public Member Functions
void	run (final String[] args)

Static Public Member Functions
static void	main (final String[] args)

Private Member Functions
void	parseArguments (final String[] args)
void	printUsage ()

Private Attributes
Config	config
String	configfile = null
String	plansfile = null

Detailed Description

Assigns each activity in each plan of each person in the population a link where the activity takes place based on the coordinates given for the activity. This tool is used for mapping a new demand/population to a network for the first time.

Author

mrieser

Definition at line 43 of file XY2Links.java.

Member Function Documentation

parseArguments()

void org.matsim.run.XY2Links.parseArguments ( final String []  args )

private

Parses all arguments and sets the corresponding members.

Parameters

args

Definition at line 54 of file XY2Links.java.

References org.matsim.core.utils.misc.ArgumentParser.iterator(), and org.matsim.run.XY2Links.printUsage().

Referenced by org.matsim.run.XY2Links.run().

                                                     {
        if (args.length == 0) {
            System.out.println("Too few arguments.");
            printUsage();
            System.exit(1);
        }
        Iterator<String> argIter = new ArgumentParser(args).iterator();
        String arg = argIter.next();
        if (arg.equals("-h") || arg.equals("--help")) {
            printUsage();
            System.exit(0);
        } else {
            this.configfile = arg;
            this.plansfile = argIter.next();
            if (argIter.hasNext()) {
                System.out.println("Too many arguments.");
                printUsage();
                System.exit(1);
            }
        }
    }

Here is the call graph for this function:

printUsage()

void org.matsim.run.XY2Links.printUsage ( )

private

Definition at line 76 of file XY2Links.java.

Referenced by org.matsim.run.XY2Links.parseArguments().

                              {
        System.out.println();
        System.out.println("XY2Links");
        System.out.println("Reads a plans-file and assignes each activity in each plan of each person");
        System.out.println("a link based on the coordinates given in the activity. The modified plans/");
        System.out.println("persons are then written out to file again.");
        System.out.println();
        System.out.println("usage: XY2Links [OPTIONS] configfile plansfile");
        System.out.println("       The following parameters must be given in the config-file:");
        System.out.println("       - network.inputNetworkFile");
        System.out.println("       - plans.inputPlansFile");
        System.out.println();
        System.out.println("Options:");
        System.out.println("-h, --help:     Displays this message.");
        System.out.println();
        System.out.println("----------------");
        System.out.println("2008, matsim.org");
        System.out.println();
    }

run()

void org.matsim.run.XY2Links.run

(

final String []

args

)

Starts the assignment of links to activities.

Parameters

args	command-line arguments

Definition at line 100 of file XY2Links.java.

References org.matsim.core.population.io.StreamingPopulationReader.addAlgorithm(), org.matsim.core.population.io.StreamingPopulationWriter.closeStreaming(), org.matsim.core.scenario.ScenarioUtils.createMutableScenario(), org.matsim.core.scenario.MutableScenario.getConfig(), org.matsim.core.config.groups.NetworkConfigGroup.getInputFile(), org.matsim.core.scenario.MutableScenario.getNetwork(), org.matsim.core.config.groups.GlobalConfigGroup.getRandomSeed(), org.matsim.core.config.Config.global(), org.matsim.core.config.ConfigUtils.loadConfig(), org.matsim.core.config.Config.network(), org.matsim.run.XY2Links.parseArguments(), org.matsim.core.population.PopulationUtils.printPlansCount(), org.matsim.core.population.io.StreamingPopulationReader.readFile(), org.matsim.core.gbl.MatsimRandom.reset(), and org.matsim.core.population.io.StreamingPopulationWriter.startStreaming().

Referenced by org.matsim.run.XY2Links.main().

                                         {
        parseArguments(args);
        this.config = ConfigUtils.loadConfig(this.configfile);
        MatsimRandom.reset(this.config.global().getRandomSeed());
        MutableScenario scenario = ScenarioUtils.createMutableScenario(this.config);
        new MatsimNetworkReader(scenario.getNetwork()).readFile(this.config.network().getInputFile());
        this.config = scenario.getConfig();

        StreamingPopulationReader reader = new StreamingPopulationReader( scenario ) ;
        final StreamingPopulationWriter plansWriter = new StreamingPopulationWriter();
        plansWriter.startStreaming(this.plansfile);
        reader.addAlgorithm(new org.matsim.core.population.algorithms.XY2Links(scenario));
        reader.addAlgorithm(plansWriter);
        reader.readFile(this.config.plans().getInputFile());
        PopulationUtils.printPlansCount(reader) ;
        plansWriter.closeStreaming();

        System.out.println("done.");
    }

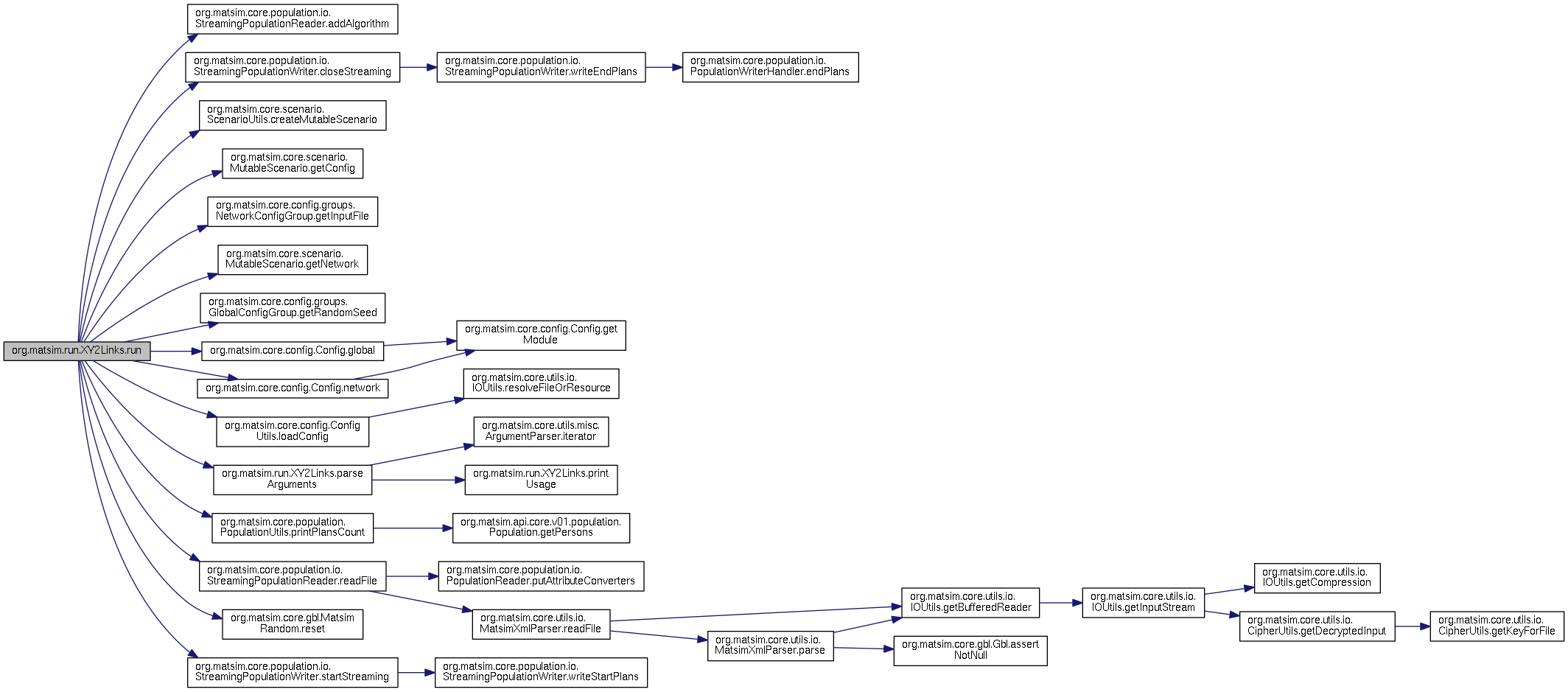

Here is the call graph for this function:

main()

static void org.matsim.run.XY2Links.main ( final String []  args )

static

Main method to start the assignment of links to activities.

Parameters

args	Array of arguments, usually passed on the command line.

Definition at line 125 of file XY2Links.java.

References org.matsim.run.XY2Links.run().

                                                 {
        new XY2Links().run(args);
    }

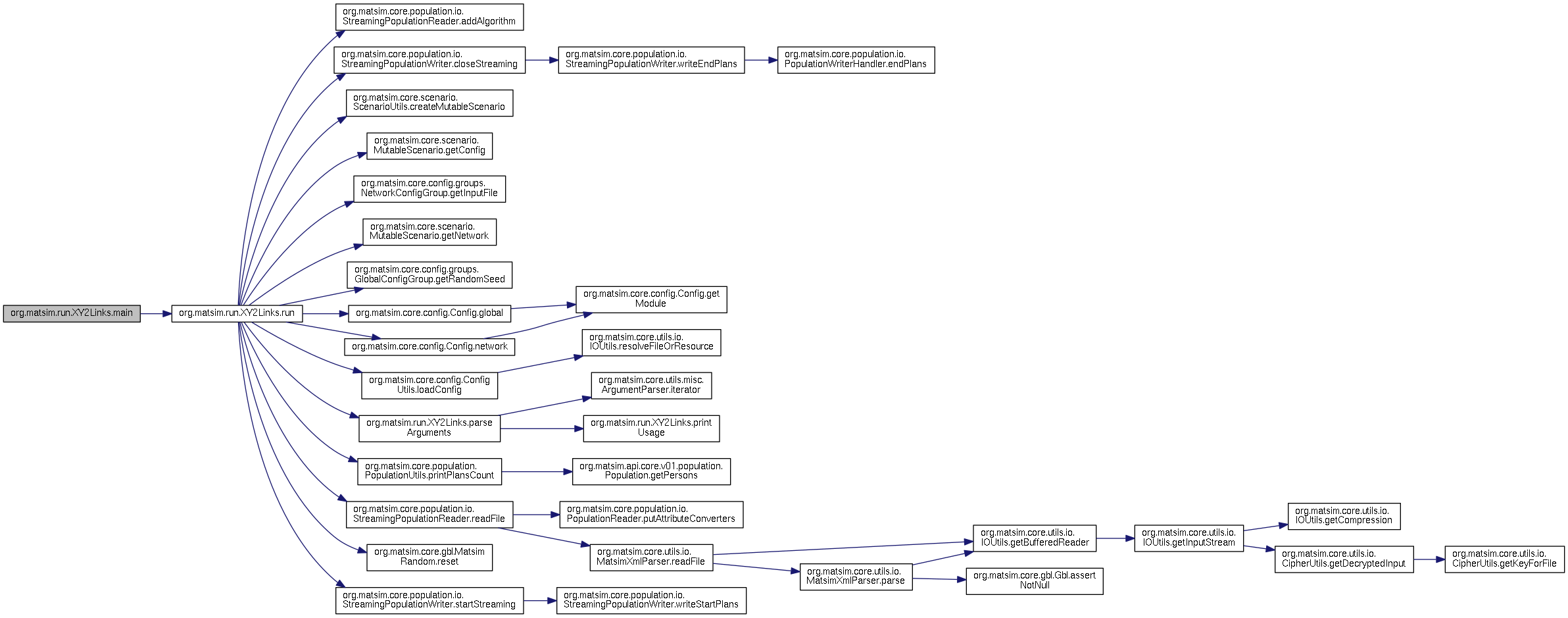

Here is the call graph for this function:

Member Data Documentation

config

Config org.matsim.run.XY2Links.config

private

Definition at line 45 of file XY2Links.java.

configfile

String org.matsim.run.XY2Links.configfile = null

private

Definition at line 46 of file XY2Links.java.

plansfile

String org.matsim.run.XY2Links.plansfile = null

private

Definition at line 47 of file XY2Links.java.

---

The documentation for this class was generated from the following file:

• run/XY2Links.java
